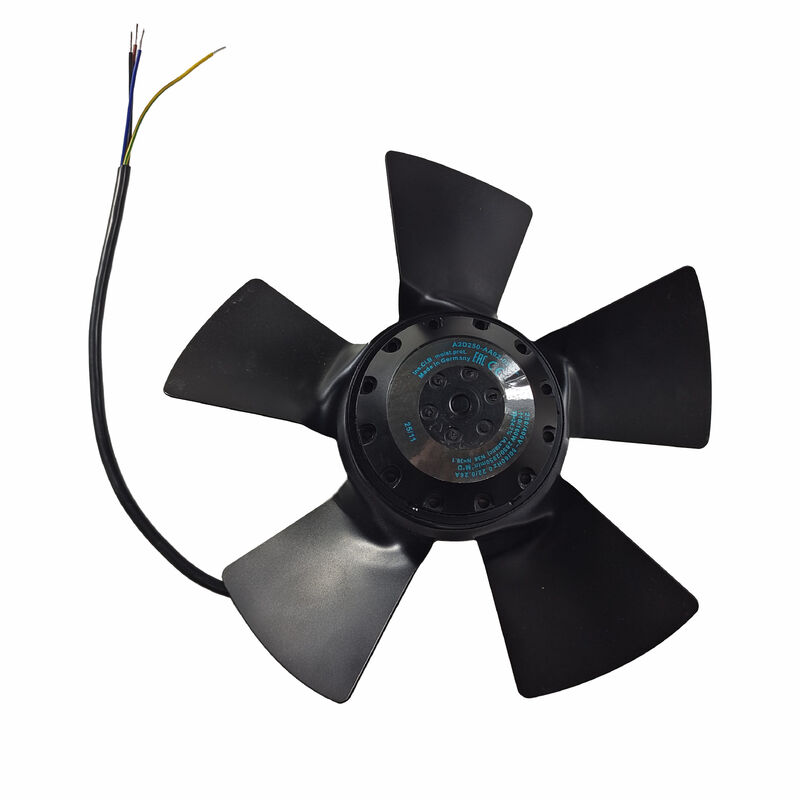

ebm-papst A2D250-AA02-02 — Industrial-Grade 250mm Three-Phase Axial Fan

The A2D250-AA02-02 is a 250mm three-phase AC axial fan from ebm-papst — one of the world's leading manufacturers of fans and motors for industrial, HVAC, and equipment cooling applications. Built around the M2D068-DF motor, this fan operates from 400V three-phase supply with star connection, delivering substantial airflow at relatively low power consumption — characteristic of ebm-papst's engineering emphasis on efficiency in industrial fan design.

The fan's frequency-dependent performance (50Hz vs 60Hz operation) reflects the proportional relationship between AC induction motor speed and supply frequency — making the A2D250-AA02-02 suitable for deployment across both 50Hz (Europe, Asia) and 60Hz (Americas) regional electrical infrastructure with predictable, documented performance differences between the two.

Key Specifications

Three-Phase Motor — Reliable Industrial Operation

The A2D250-AA02-02's 400V three-phase motor design offers operational advantages over single-phase fan motors in industrial settings:

Self-starting torque: Three-phase induction motors generate starting torque inherently from the rotating magnetic field created by the phase-shifted supply — no starting capacitor or auxiliary winding is required, as is the case with single-phase motors. This simplifies the motor design and removes a potential failure point.

Smoother torque delivery: Three-phase motors produce smoother, more constant torque output compared to single-phase motors, which inherently have torque ripple at twice the line frequency. This translates to lower vibration in the fan assembly.

Standard industrial supply compatibility: 400V three-phase is the standard industrial distribution voltage across most of Europe, parts of Asia, and many industrial facilities worldwide — the A2D250-AA02-02 connects directly to this supply without additional voltage conversion equipment

Applications

Industrial cabinet cooling: Large electrical cabinet and switchgear cooling where high airflow volume at moderate static pressure is required to remove heat from densely packed power electronics.

HVAC air handling units: Building ventilation and air handling system fans where the 250mm three-phase axial format provides the airflow capacity needed for commercial and industrial air circulation systems.

Process equipment cooling: Industrial process equipment, drying systems, and heat exchanger forced-air cooling applications using three-phase fan motors integrated into the equipment's cooling circuit.

Generator and engine cooling systems: Auxiliary cooling fan applications in industrial generator sets and engine cooling systems requiring robust, continuously-rated three-phase fan motors.

FAQ

Q1: Can A2D250-AA02-02 be connected to a variable frequency drive for speed control?

The standard A2D250-AA02-02 specification does not indicate variable speed drive (VFD) operation in its base configuration — confirm from ebm-papst's documentation whether the M2D068-DF motor is suitable for VFD control or whether a VFD-rated variant of the A2D250 family is required. Operating an induction motor not rated for VFD use on variable frequency supply can cause insulation stress from voltage waveform harmonics and bearing currents that a standard motor design does not account for.

Q2: What is the difference in service life between 50Hz and 60Hz operation for A2D250-AA02-02?

The 60Hz operating point runs the motor at higher speed and higher internal temperature (within the rated 40°C maximum ambient for 60Hz vs 70°C for 50Hz) — generally, operating closer to a motor's thermal limit reduces insulation life relative to operating with more thermal margin. For installations where ambient temperature is consistently below 40°C, both frequency operating points provide their respective rated service life; for higher ambient temperatures, 50Hz operation provides additional thermal margin.

Q3: What mounting orientations does A2D250-AA02-02 support?

The standard configuration supports shaft horizontal mounting or rotor-on-bottom vertical mounting. Rotor-on-top mounting is available as a special order configuration — confirm with ebm-papst's documentation whether the standard A2D250-AA02-02 part number includes this option or whether a different part number variant is required for the rotor-on-top orientation.

Q4: How does the IP44 rating limit installation locations for A2D250-AA02-02?

IP44 protects against water splashing from any direction but is not rated for direct water jets, high-pressure washing, or submersion. Suitable installation locations include indoor industrial cabinets, covered outdoor equipment enclosures, and general indoor HVAC ductwork. For wash-down environments, outdoor exposed installations subject to heavy rain or direct spray, or any application requiring higher ingress protection, confirm from ebm-papst's product range whether a higher IP-rated variant of the A2D250 series is available.
