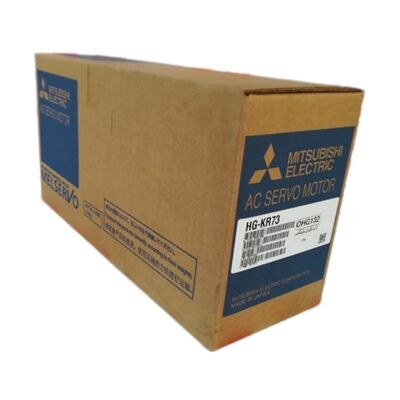

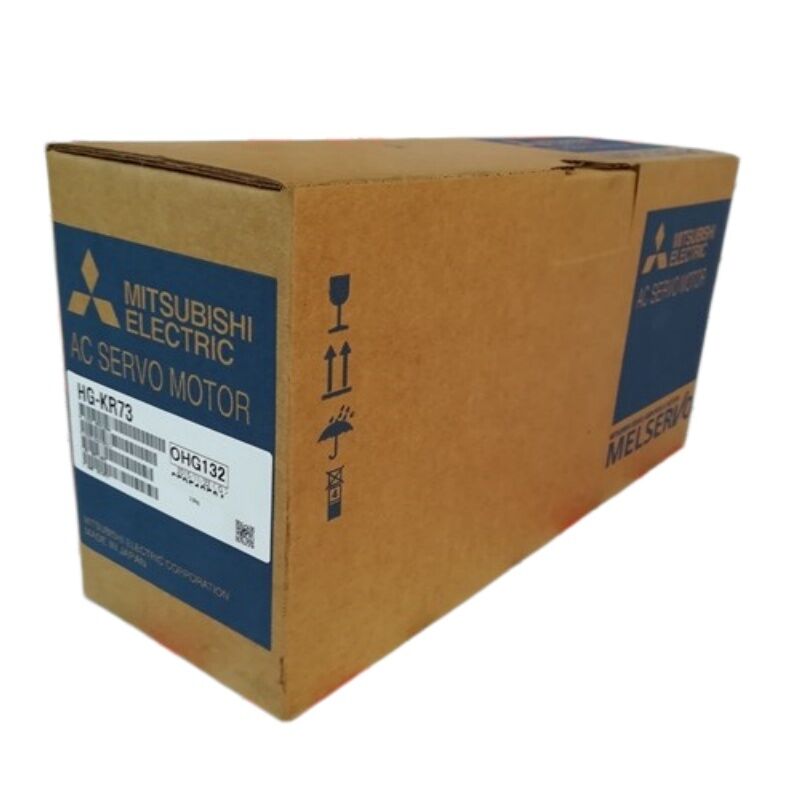

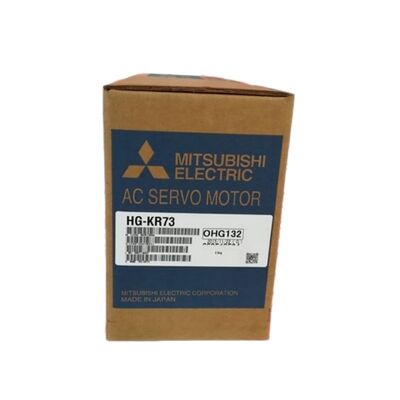

MITSUBISHI NOVO HG-KR73J NOVO Motor Servo Mitsubishi
Servo Motor HGKR73 Série HG – 0.75kW, 3000RPM, Baixa Inércia, Pequena Capacidade, Eixo Reto Padrão.
| Parâmetro |
Especificação |
| Marca principal |
Mitsubishi Electric |
| Função principal |
Servomotor CA |
| Nome da série / família do produto |
Série MELSERVO J4 |
| Nome da sub-gama |
Série HG-KR |
| Funções |
Servomotor rotativo sem escovas CA |
| Design |
eixo reto, codificador de feedback absoluto embutido (22 bits), baixa inércia / pequena capacidade de potência, refrigeração natural |
| Tensão de alimentação (CA) |
Classe 200 Vac |
| Corrente nominal |
4.8 A |
| Potência ativa nominal (kW) |
0.75 kW / 750 W |
| Velocidade de rotação |
3000 rpm (nominal), 6000 rpm (máxima) |
| Torque |
2.4 Nm nominal, 8.4 Nm máximo |
| Momento de inércia |
0.000126 kg·m² (1.26 kg·cm²) |
| Tipo de conexão |
Conector retangular de 4 pinos |
| Modo de montagem |
Montagem com flange de 80x80 mm |
| Resolução |
Feedback de 22 bits (equivalente a 4.194.304 ppr) |
| Grau de proteção |
IP65 |
| Dimensões |
A97.1 mm x L80 mm x P152 mm |
| Altura líquida |
97.1 mm |
| Largura líquida |
80 mm |
| Profundidade líquida |
152 mm |
| Temperatura do ar ambiente para operação |
0...+40 °C |
| Temperatura do ar ambiente para armazenamento |
-15...+70 °C |
| Carga radial máxima |
392 N |
| Carga axial máxima |
147 N |
| Corrente máxima |
17 A |
